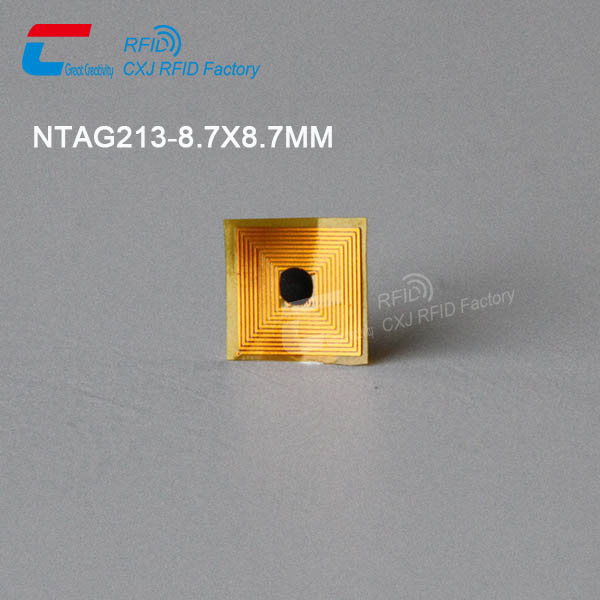

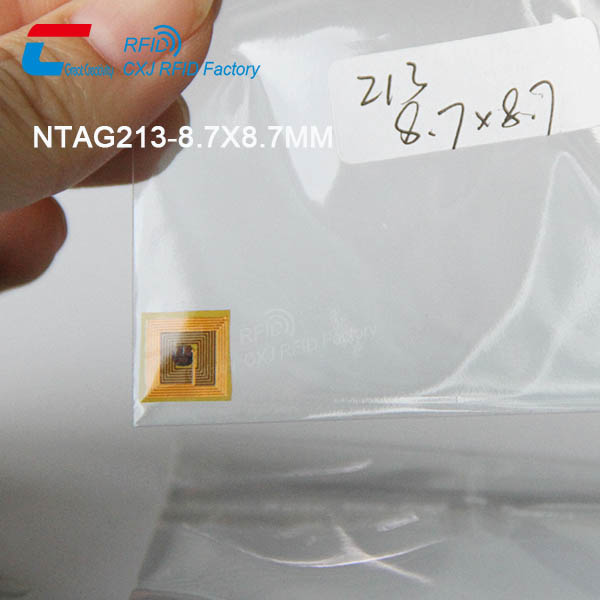

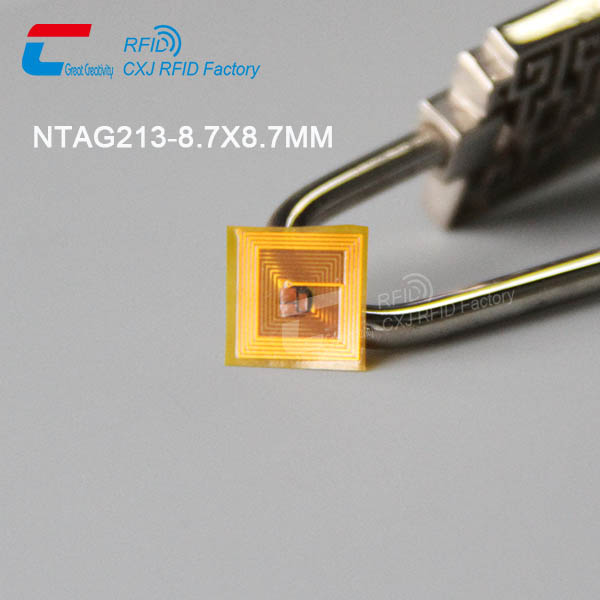

8.7*8.7mm Square Ntag213 NFC Tags FPC Tiny RFID Wet Inlay

RFID FPC Tiny NTAG213 NFC Tags

FPC Square Micro Ntag213 NFC Tags

  • Model: CXJ-RFT001
  • RFID chip: HF 13.56mhz 14443 protocol
  • Antenna: Double copper antenna
  • Antenna Size: 8.7*8.7mm or customized
  • Material: PET (waterproof, resistance of chemical and heating)
  • Reading Distance: 1cm~2cm
  • MOQ: 500pcs
  • Sample: Free sample for test

Contact Us Today!Skype: chen.fangqun

Description

Description

13.56MHz FPC Tiny Ntag213 NFC Tags

13.56MHz FPC NTAG213 NFC Tags are widely used in electronic products, toy, food, tobacco, wine, drug,cosmetic, accessories and other high-end products trace-ability, security and home entertainment applications, wearable smart application and some insert applications.

Custom Micro RFID FPC Tag

Features:

  • Mirco size can less than 10mm, 8.7mm etc.
  • Double copper antenna reading distance can reach to around 2cm.
  • PET waterproof, resistance of chemical and heating.
  • Wet inlay or custom LOGO printing.
  • Can be anti metal.
  • Shape and size can be customized.

Specifications:

Product Name: 8.7*8.7mm Square Ntag213 NFC Tags FPC Tiny RFID Wet Inlay
Model: CXJ-RFT001
Antenna: Double copper antenna
Antenna Size: 8.7*8.7 mm, 4*16.5mm, 5*15mm, 5.5*19mm, 7*7mm, 8*15mm, 8.2*16.5mm, 9*9mm, 9*33mm, 9*28mm, 12*12mm, 12*17mm, 18*18mm, round 8mm, round 9mm, round 11mm, round 15mm, round 16mm, etc or customized
Material: PET (waterproof , resistance of chemical and heating)
RFID Chip: HF 13.56MHz, 14443 protocol
Reading Distance: 1CM~2CM
Metal: Can be anti metal or normal
Printing: Wet inlay or custom LOGO printing
MOQ: 500pcs
Sample: Free stock testing sample and buyer pay freight
Package: 100pcs/opp bag, then into a white box, then into a carton



Applications of NFC Wet Inlay

CXJ self R&D micro FPC copper mini Ntag213 NFC Tags for bluetooth wristband pedometer for payment tracking & member management. This type with double copper antenna, special shape size 18.45*9.8mm, HF 13.56mhz chip, 2cm reading distance outer case, 1~1.5cm inside wristband case.

Kindly find the pic below for FPC mini RFID tag and the bluetooth wristband, you will find our Ntag213 NFC tags is perfect fit in the wristband case. The bluetooth wristband pedometer can track steps, calories, heart rate, cycling data and sleep qualities, IP 67 waterproof and OK for swim etc.

Ntag213 NFC tags



Contact us to get the Free Stock Samples. WhatsApp: +86 13510271993 | Skype: chen.fangqun
