Custom Apparel RFID Passive UHF Tags For Garment Management
860-960 mhz Paper Passive UHF RFID Tags
- Model: CXJ-UHFT003
- Material: Paper
- Frequency: Global 860-960MHz
- Chip: Alien Higgs 3
- Dimensions: 85*32mm or customized
- Support: EPC Global Class1 Gen2 & ISO 18000-6C
- EPC Memory: 96 bits to 480 bits.
- User Memory: 512 bits.
- MOQ: 1000pcs
- Sample: Free samples for function testing.
Get A Quote Now! or Skype: live:cxjrfid
Description

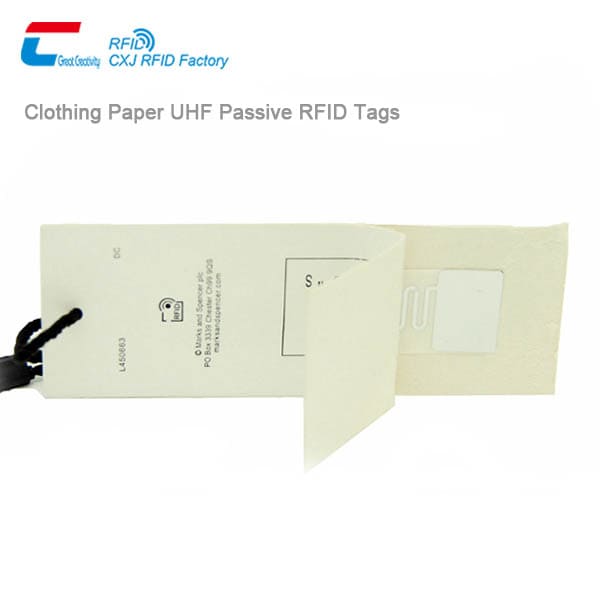

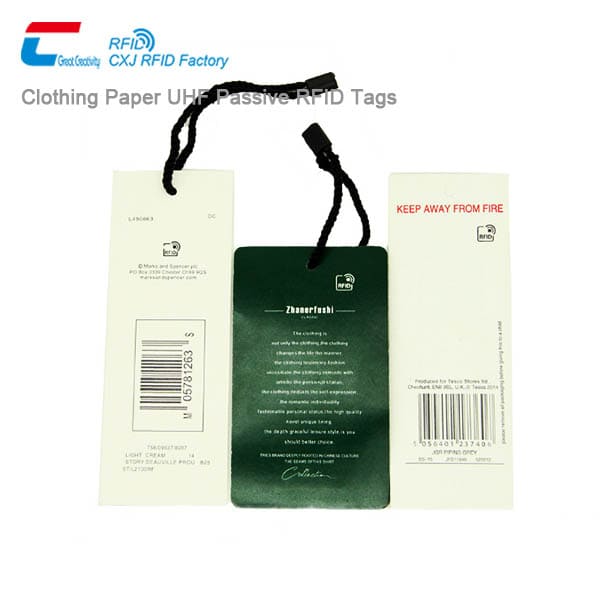

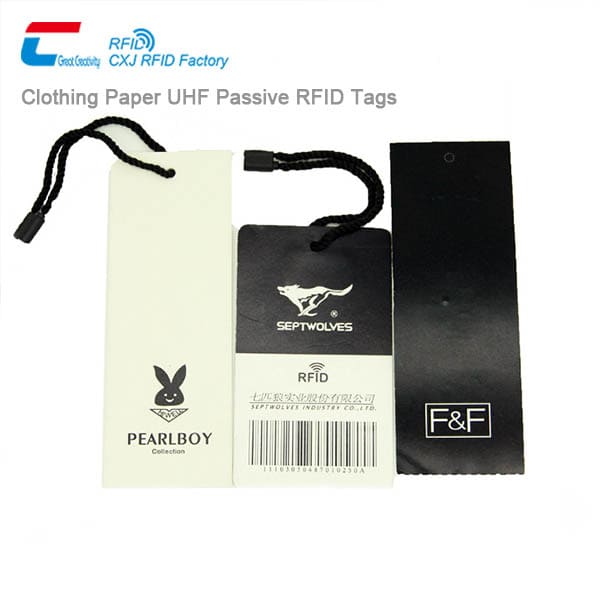

RFID Clothing Paper Passive UHF Tags
UHF Hang Tag is one of Passive UHF Tags use for the Apparel industry. Custom printable UHF hang tag marks the success or failure in the effectiveness of the traceability system for your clothing business. It can be applied to Garments, Shoes, Luggage, Sporting goods, Appliances and many more. One famous apparel company said staffs used to have to spend 40 hours to check inventory because it was barcode technology and they need to scan barcode from items on racks one by one. But now, with RFID technology, they can walk around the store and get the job done in about five hours. The tech is so effective that they bought 500 million RFID chips.
Apparel Passive UHF Tags Feature
- RFID Hang tags enabling you to choose from appropriate product for the garment tracking applications.
- Excellent reading range and proven product by implementing on many apparel tracking solutions.
- Availability of both Passive UHF Tags for inexpensive tracking of dress compared to the active tags.
- UHF RFID tags for cloths can be used to bring automation and theft prevention while reducing the cost and complexity of the processes involved.
Specification
| Name | Custom RFID Apparel UHF Hang Tag for garment management | |||
| Material | Paper | Dimensions | 85*32mm or customized | |
| Working Temp | -20℃—60℃ | Storage Temp | -40℃—60℃ | |
| RFID Features | ||||
| RFID Standard | EPC C1G2 (ISO18000-6C) | |||
| Chip Type | Alien Higgs 3 | |||
| EPC Memory | 96 bits to 480 bits | |||
| User Memory | 512 bits | |||
| Read Range | 902-928 MHz | 4.0–7.0m | ||
| 865-868 MHz | 4.0–7.0m | |||
| Other Features | ||||
| Data Storage | > 10 years | |||
| Re-write | 100,000 times | |||
| Customization | Company logo printing, Barcode, Encoding, Serial number, etc. | |||
|
Applications
|
Logistics sorting,
Apparel retail and management, Assets tracking management, etc. |
|||

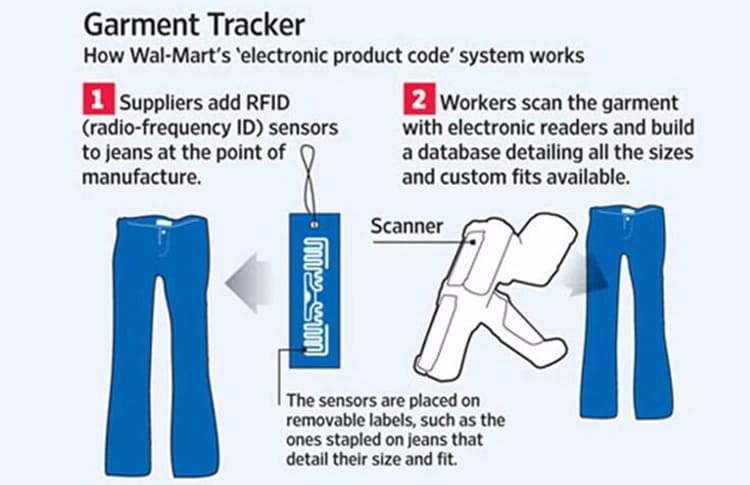

RFID Garment Tracker System Process

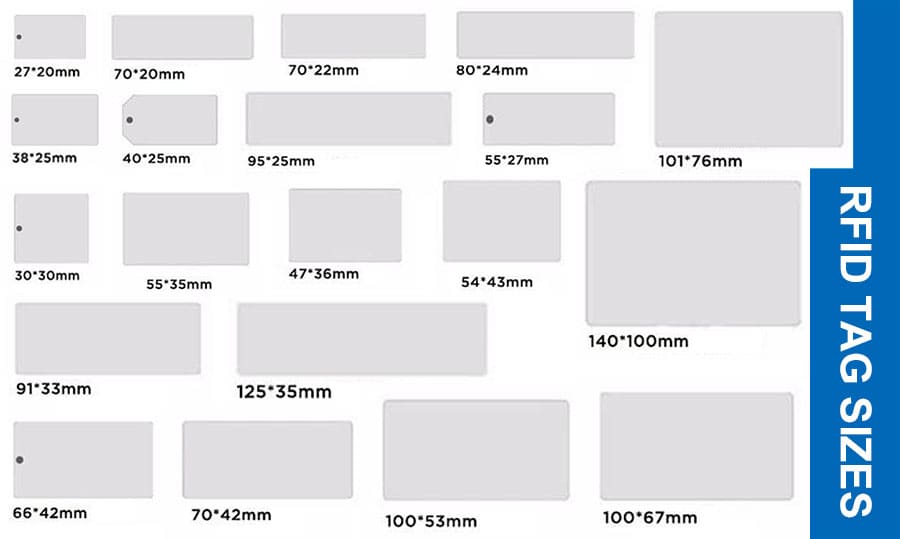

Clothing RFID UHF Passive Tags Sizes
Custom RFID UHF Hang Tag for garment management, perfect for Apparel Tracking. Contact Us Today!
FAQ
- Q:Can I get some samples for testing?
A:Sure,we could give samples for free. - Q:Can you provide hardware and software?
A: We can provide reader and antenna, if you want to develop your own software, we suggest to find a local software company to help. - Q:What’s the payment term?
A: We can accept for T/T, Paypal, Western Union, Visa credit card. Full prepaid for small orders and 50% deposit and balance 50% before shipping for big quantity. - Q:What’s the delivery way?
A: We have VIP accounts in Fedex, DHL and UPS, we can get a low discount from them. If you want us to send goods to you by Express, this will helps us to save money and low the price.
