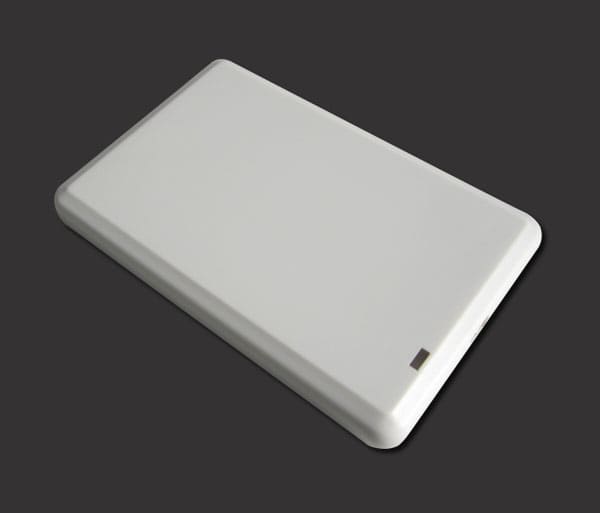

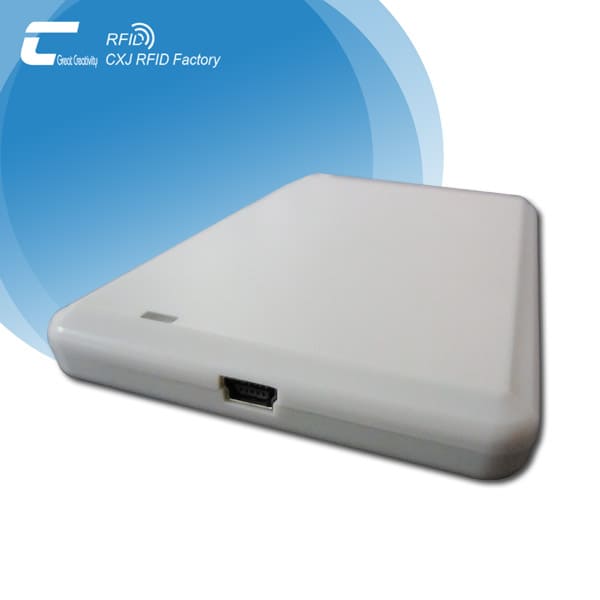

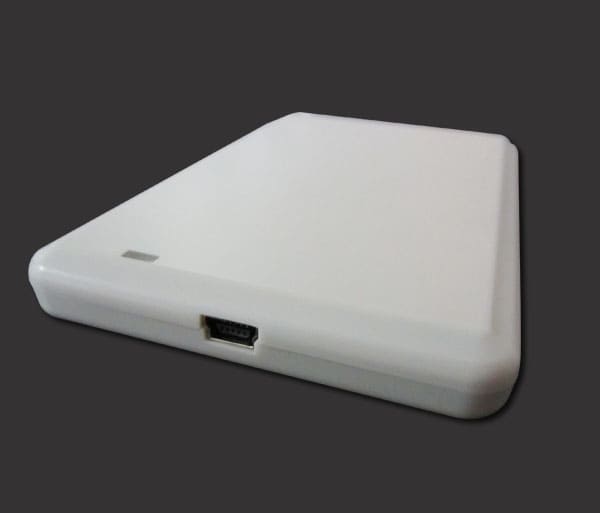

USB Wireless UHF RFID Desktop Reader with Fiber Thin Design
Wireless UHF RFID Desktop Reader
- Model No.: CXJ-RRW011
- Protocol: ISO18000-6C
- Frequency: FCC：902～928MHz，ETSI：865～868MHz
(can be adjusted according to different countries or regions) - Size: 105mm×70mm×11mm
- Read speed: >100time /s
- Antenna: Internal Antenna
- Work temperature: -10～+60°C
- Storage temperature: -25～+80°C
Contact us Now! or Ms. Edith Chen | Skype: live:cxjrfid
Description
Description
Wireless UHF RFID Desktop reader Specification
CXJ Wireless UHF RFID Desktop reader with small shape, easy to carry, suitable for assembly line location management, entrance guard, books, document management, electronic tag reading and writing as well as the background, authorization, formatting, such as operation, can be read card, writing card format, authorization, etc.
Feature
- Support ISO18000-6C protocol.
- USB communication interface support.
- The output format of the simulation keyboard mode and The output format of the simulation keyboard mode.
- Virtual serial port work mode、USB No drive way and USB No drive simulation keyboard mode optional.
- Advanced tag collision processing algorithm, high literacy rate.
 |
|
 |
 |
Typical application
- Assembly line management.
- Tag read/write, authorization, formatting, and normal operation.
- electronic tickets, entrance guard card machine and personnel.
- Management of assets and assets.
Main technical performance index
| Physical parameter | |

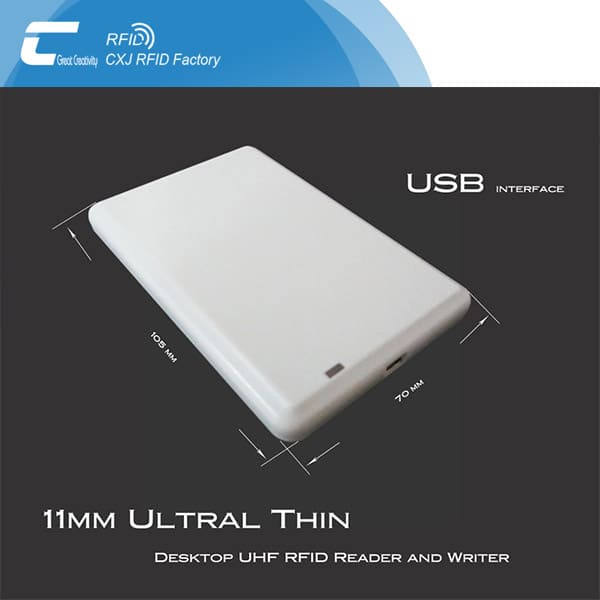

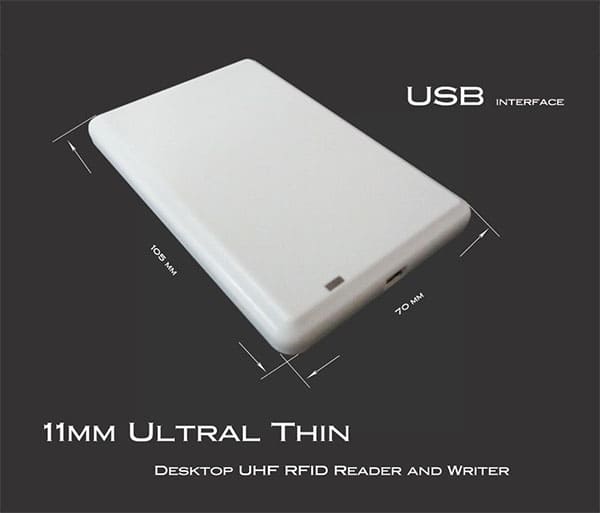

| Size | 105mm×70mm×11mm |
| Weight | 350g |
| Canning material | Fiber thin shape design |
| Power | USB interface, no external power supply |
| Operating power | 1W |
| UHF RFID | |
| Protocol | ISO18000-6C |
| Frequency | FCC：902～928MHz，ETSI：865～868MHz
(can be adjusted according to different countries or regions) |
| Output power | Maximum 10dBm (adjustable in software) |
| Power regulation | 1dB |
| External interface | USB1.1 |
| Operating mode | To work with broad spectrum hopping (FHSS) or fixed frequency emission |
| Read speed | >100time /s |
| Antenna | Internal Antenna |
| Reading distance | 0～18cm (According to the label performance and the label working environment) |
| Written distance | 0～8cm (According to the label performance and the label working environment) |
| Work Environment | |
| Work temperature | -10～+60°C |
| Storage temperature | -25～+80°C |
| Humidity | 10%～95% RH |
| Support | |
| Document | Demo software, provides dynamic connection libraries(DLL), support secondary development. |
