Wholesale UFH Handheld RFID Writer For Access Control
Handheld RFID writer:
Model No.: CXJ-RR-0008
Company Brand: CXJ
Operation System: Window CE 6.0
CPU: ARM11 533MHz
Memory: 256MB SDRAM, 256MB Flash
Touch screen: 3.5 inches TFT
SDK: C++,VC,C# second development kits
Working frequency: 902MHz~928MHz(customized)
Dimension: 170*80*30mm
Description

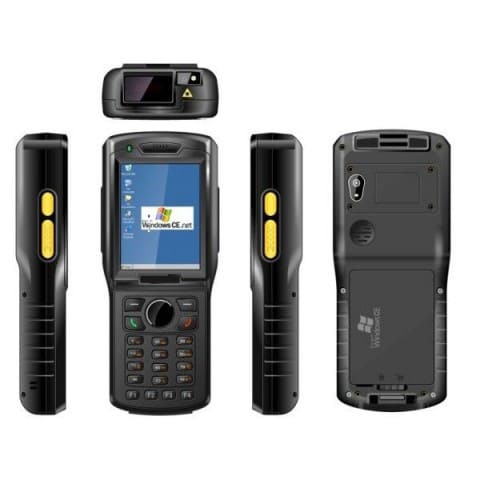

Handheld RFID writer:
Handheld RFID writer is radio frequency identification, can automatic recognize the target and access to relevant RFID signal data without human intervention, besides it’s easy to operate, can identify fast moving objects and identifying a plurality of RFID tags. Handheld RFID writer have fixed type and hand held type. The hand held type handheld RFID writer includes a low frequency, high frequency, UHF, active and so on. Generally, handheld RFID writer apply to yard management, it realize the identity of the vehicle identification, automatic deductions. If apply to long-range handheld RFID writer, can realize non-stop and avoid taking cards services or unattended channels.
Handheld RFID Writer Features:
- Support LF , HF , UHF RFID ;
- Support WiFi, Communicate with LAN by wireless network;
- Outdoor user can keep in touch with Headquarters at any time by GPRS;
- Integrated Long Range Laser Barcode Scanner;
- Hand-write input, support signature capture function;
- Industry IP54 Hardware design and can be used in Harsh environment;
- Good Performance and Cost-effective.
Specification:
| CPU | ARM11 533MHz |
| OS | Microsoft Windows CE 6.0 |
| Memory | 256MB SDRAM, 256MB Flash |
| Touch Screen | 3.5 inches TFT touch screen, 240×320 pixels, |
| Keyboard | 30 keys, including power, digital / English keys and function keys |
| Speaker | Built-in speaker, high-definition output |
| Buzzer | Yes |
| LED | 2-colors LED, support power and GPRS indicator light |
| Battery | 3.7V, 3100 mAh or 3.7V/5000mAh Rechargeable Lithium battery |
| 2nd Development | C++,VC,C# second development kits |
| 1D barcode | laser or red-light engine that supports common 1D barcode : |
| support UPC-A,UPC-E, EAN-13,/JAN-13, EAN-8/JAN-8 | |
| CODE 39, CODE 128, CODABAR, CODE 93. | |
| 2D barcode | Honeywell laser that supports common 2D barcode : QR code, |
| Aztec, data matrix,PDF417,etc. | |
| LF RFID(125/134.2 KHz) | Support EM4001,TK4001. |
| HF RFID(13.56MHz) | Support ISO14443A ISO 14443A/B,Mifare S50, S70, Desfire, Mifare pro, ultralight,FM11RF08,desfire; or ISO 15693, ISO18000-3, like icode II, icode II SLIX,tag-it,etc |
| UHF RFID | Support:ISO18000-6C, EPC Class 0, EPC Class 1 (GEN2) Frequency: 860 MHz~960 MHz Distance: 0~3m ( with U1 module) 0~7m (with U7 module) |
| Active RFID (2.4GHz) |
Distance: 30-100 m , refer to scanning type |
| GPS | Position: 20 channels maximum, Position accuracy: 10m, speed accuracy: 0.1m/s, updated rate: 1s. Support A-GPS. suppor |
| Wireless Communication | |
| WiFi | IEEE 802.11 b/g |
| Bluetooth | Bluetooth Class II V1.2 |
| 3G (optional) | WCDMA/EVDO/HSDPA( 850/2100MHz) |
| GPRS (optional) | GSM/GPRS/EDGE ( 900/1800/1900MHz) |
| CDMA(optional) | CDMA2000 1X RTT (CDMA 800/ 1900 MHz) |
| Expansion Interface | |
| USB Interface | Mini USB interface, support USB 2.0 |
| SIM/UIM card slot | 1 SIM/UIM card slot (supports GPRS/ CDMA) |
| SD card slot | 1 micro SD card slot (supports up to 2GB) |
| PSAM card slot | 2PSAM card slot |
| Handle (optional) | Handle with barcode scanning trigger |
| Physical | |
| Outward | industrial design, support one-handed operation |
| Size (W x H x D) | 170 * 80 * 30 mm |
| Weight | with battery: 320g |
| Environment | |
| Working Temperature | -15 ℃ ~ 55 ℃ |
| Storage temperature | -40 ℃ ~ 65 ℃ |
| Humidity | 5% RH ~ 95% RH (no condensation) |
| Accessories | |
| Charger | Input: 100~240VAC , 47-63hz , Output: 9V/1A, with a charge indicator |
| USB cable | 12 pin communication interface , provide USB interface |
| Touch pen | Use for handwriting input |
| Wrist belt | Wrist belt to fasten the terminal on your hand |
